Pixi architecture​

COLFIO Library​

  • a minimalist library for NI-APH that implements ECS pattern with the most important amenities
  • located in examples/libs/pixi-ecs
  • features
    • object builder
    • scene manager
    • PIXI-ECS bridging
    • messaging pattern
    • reactive components
    • states, flags and tags

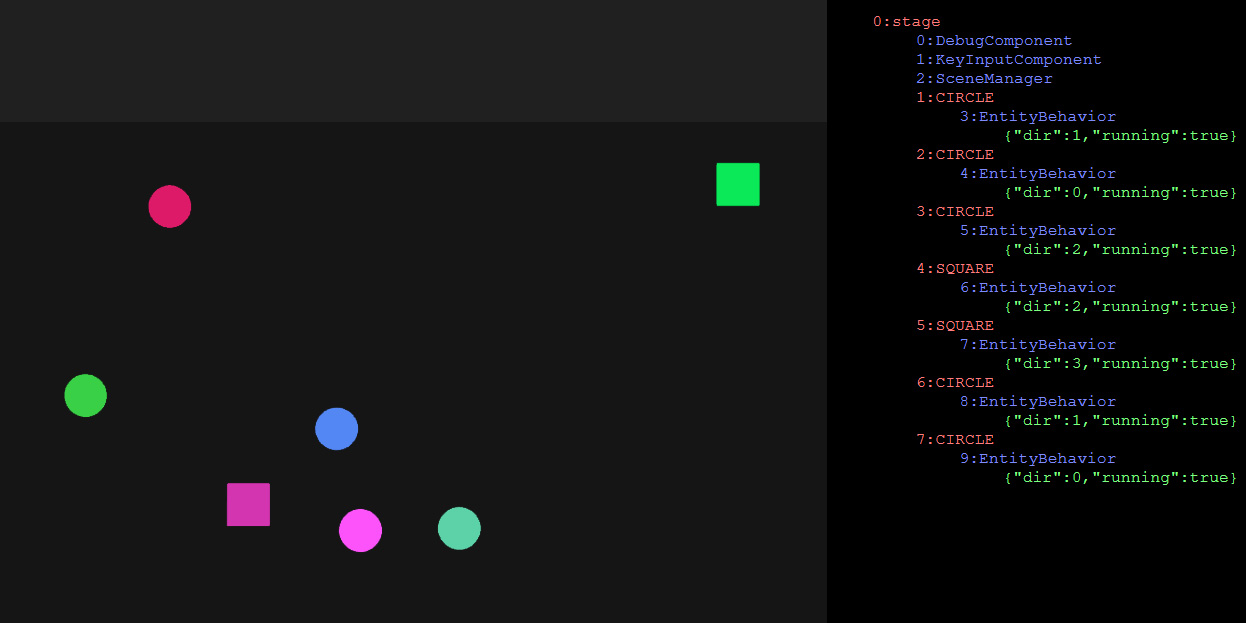

    • simple debugging window
    • keyboard/pointer handlers

Architecture​

  • PIXI.Application
    • PIXI application
  • PIXI.Ticker
    • PIXI clock for game loop
  • PIXI.Container, PIXI.Sprite,...
    • PIXI game objects
  • ECS.Engine
    • entry point to the library, accepts a configuration object and initializes PIXI game loop
  • ECS.Scene
    • a scene manager, provides querying of components and game objects, manages global components
  • ECS.Component
    • functional components of game objects
    • global components are attached to the stage object
  • ECS.GameObject
    • an interface that declares extension methods for PIXI containers
    • in older versions, all components and the Scene worked with the containers through GameObject interface and accessing PIXI attributes required to use casting functions such as ˙asContainer()˙. The current version uses inherited ˙ECS.Container˙, so that it is possible to access both ECS and PIXI functions at the same time. GameObject interface is now only used internally for derived objects to force them to implement all ECS functions
  • ECS.GameObjectProxy
    • a delegate that contains implementation of methods in ECS.GameObject interface. It's used as a proxy by respective containers (because JavaScript doesn't have multi-inheritance facility)
  • ECS.Container, ECS.Sprite,...
    • PIXI containers that inherits from respective PIXI objects, implements ECS.GameObject interface and passes the implementation on to ECS.GameObjectProxy (in order to avoid duplicated code)

COLFIO binding​

  • instead of creating PIXI.Container, PIXI.Sprite etc., we can create ECS.Container, ECS.Sprite,...
  • those objects inherit from their respective counterparts in PIXI. Additionally, they contain methods from ECS.GameObject interface
  • they can be treated in the same way as regular PIXI objects
  • they use GameObjectProxy as a provider of the implementation of ECS features
  • any functional behaviour can be implemented in components, having them manipulate with game objects they are attached to

How to start​

  • import the ECS library
  • get your canvas
  • call the init function
  • load your resources by using PIXI loader
  • access the engine.scene

import * as ECS from '../libs/pixi-ecs';

class MyGame {
  engine: ECS.Engine;

  constructor() {
    this.engine = new ECS.Engine();
    let canvas = (document.getElementById('gameCanvas') as HTMLCanvasElement);

    this.engine.init(canvas, { width: 800, height: 600 });

    this.engine.app.loader
        .reset()
        .add('spritesheet', './assets/spritesheet.png')
        .load(onAssetsLoaded);
  }

  onAssetsLoaded = () => {
      this.engine.scene.clearScene();
      const graphics = new ECS.Graphics();
      this.engine.scene.stage.addChild(graphics);
  }
}

export default new MyGame();

  • engine.app is a link to PIXI.Application
  • scene.stage is a link to the stage object in PIXI
  • scene.stage.addChild(...) allows us to add children to the stage object
let sprite = new ECS.Sprite('mySprite', PIXI.Texture.from('spritesheet'));
sprite.position.set(engine.app.screen.width / 2, engine.app.screen.height / 2);
sprite.anchor.set(0.5);
engine.scene.stage.addChild(sprite);

Config​

  • to optimize query search in the scene, all components and objects are stored in hash maps, sets and array
  • in order not to allocate too much memory, searching has to be enabled explicitly
    • don't worry! If you forget to enable it, it will inform you via an Error thrown 🤣
new ECS.Engine().init(canvas, {
    width: 800,
    height: 600,
    debugEnabled: true,
    flagsSearchEnabled: true,
    statesSearchEnabled: true,
}, true);
  • resizeToScreen - if true, the game will be resized to fit the screen
  • transparent - if true, the canvas will be trasparent
  • backgroundColor - canvas background color
  • antialias - enables antialiasing
  • width - canvas virtual width
  • height - canvas virtual height
  • resolution - scale of displayed objects (1 by default)
  • gameLoopType - type of the game loop (FIXED, VARIABLE)
  • gameLoopThreshold - upper threshold of game loop in ms (300 by default)
  • gameLoopFixedTick - period for fixed game loop (16ms by default)
  • speed - speed of the game (1 by default)
  • flagsSearchEnabled - enables searching by flags
  • statesSearchEnabled - enables searching by states
  • tagsSearchEnabled - enables searching by tags
  • namesSearchEnabled - enables searching by names
  • notifyAttributeChanges - enables notifying when an attribute changes
  • notifyStateChanges - enables notifying when a state changes
  • notifyFlagChanges - enables notifying when a flag changes
  • notifyTagChanges - enables notifying when a tag changes
  • debugEnabled - injects a debugging HTML element

Components​

  • every functional behavior is implemented in components
  • every component is attached to one game object
  • global components are attached directly to the stage
  • id - unique identifier
  • name - component name
  • props - custom property object (void by default)
  • owner - game object this component is attached to
  • scene - link to the scene
  • fixedFrequency - frequency of the fixed udpate loop (if unset, fixedUpdate() will NOT be invoked)
  • cmpState - component state (NEW, INITIALIZED, RUNNING, DETACHED, FINISHED)
  • onInit() - called when the component is added to an object
  • onAttach() - called when the component is attached to the scene
  • onMessage() - called whenever a message the component has subscribed to arrives
  • onFixedUpdate() - called at a fixed interval
  • onUpdate() - called every frame
  • onDetach() - called before the component is detached from the scene
  • onRemove() - called before the component is removed from the scene
  • onFinish() - called whenever someone calls 'finish()', followed by removing from the scene
  • subscribe() - subscribes for a message of a given key
  • unsubscribe() - unsubscribes a message of a given key
  • sendMessage() - sends a message
  • finish() - cancels the execution of the component and removes it from the scene instantly

A simple component​

  • create a new component
  • initialize it in onInit()
  • handle incoming messages in onMessage()
  • handle update loop in onUpdate(delta, absolute)
class Movement extends ECS.Component {

  onInit() {
    this.subscribe('STOP_EVERYTHING');
  }

  onMessage(msg:  ECS.Message) {
    if(msg.action === 'STOP_EVERYTHING') {
      this.finish();
    }
  }

  onUpdate(delta: number, absolute: number) {
    this.owner.pos.set(this.owner.pos.x + 20, this.owner.pos.y);
  }
}

Lifecycle​

  • components are not added to objects instantly, but at the beginning of the update loop of their respective objects
    • immediate execution can be forced by calling addComponentAndRun instead of addComponent
  • components can be reused - removed from an object and added to another one
  • a component can be only attached to one game object at a time
  • components can receive messages if they are running
  • components can't receive message they had sent by themselves
  • finish() will stop the components from execution and removes it from the scene
  • if a game object is to be removed, all of its components will be finalized and removed as well
  • if the parent game object gets detached from the scene (e.g. for later reuse), all of its components will be also detached and re-attached afterwards
    • onAttach() is called when a component is attached to the scene. It can happen in two cases:
      • a) component is added to an object that is already on the scene
      • b) a game object is attached to a scene (so will be its components)
    • if the component is detached, it won't update nor receive any messages
  • recommended: if you don't need to react on detaching, use only onInit() for initialization and onRemove() for clean-up

Game Object​

  • game object is a class inherited from respective PIXI containers (Container, Sprite, Text, Mesh,...)
  • id - unique identifier
  • name - name (empty string by default)
  • stateId - numeric state
  • pixiObj - link to a raw object
  • parentGameObject - link to the parent
  • scene - link to the scene
  • _proxy_ - link to the proxy that contains implementation of GameObject interface
  • asContainer() - casts itself to ECS.Container
  • asParticleContainer() - casts itself to ECS.ParticleContainer
  • asXYZ() - casts itself to any class from the list of PIXI containers (throws an error if the casting is not possible)
  • addComponent() - adds a new component
  • findComponentByName() - finds a component by its name
  • removeComponent() - removes a component
  • assignAttribute() - adds a new attribute to the hashmap
  • getAttribute() - gets an attribute by its key
  • removeAttribute() - removes an existing attribute
  • addTag() - adds a tag to the set of tags
  • removeTag() - removes a tag
  • hasTag() - returns true if given tag is in the set
  • setFlag() - sets a bit-flag
  • resetFlag() - resets a bit-flag
  • hasFlag() - returns true if given bit-flag is set
  • invertFlag() - inverts given bit-flag
  • detach() - detaches object from the scene but doesn't destroy it from PIXI
  • destroy() - destroy the object from the scene and from inner PIXI collections, and removes all of its components
  • destroyChildren() - destroys all children
let newObject = new ECS.Sprite('warrior', warriorTexture);

// we can store any number of attributes of any type
newObject.assignAttribute('speed', 20);

// we can store as many tags as we want
newObject.addTag('projectile');

// we can store flags within a range of 1-128
newObject.setFlag(FLAG_COLLIDABLE);

// a numeric state for a simple
newObject.stateId = STATE_MOVING;

Lifecycle​

  • objects are added to the game scene instantly
  • when an object is attached to the scene, the scene will invoke the update loop upon it (it's being called recursively)
  • if the object is detached, it will be removed from the game scene but it will not be destroyed
    • detached objects can be re-added to the scene
  • if the object is destroyed, it can no longer be used

Scene​

  • serves as a message bus and scene manager
  • app - link to the PIXI.Application
  • name - name of the scene
  • stage - root game object, derived from PIXI.Container
  • currentDelta - current delta time
  • currentAbsolute - current game time
  • callWithDelay(number, function) - invokes a function with a certain delay
  • addGlobalComponent(cmp) - adds a global component (attached to the stage)
  • findGlobalComponentByName(name) - finds a global component by name
  • removeGlobalComponent(component) - removes a global component
  • assignGlobalAttribute(name, attr) - assigns a global attribute to the stage
  • getGlobalAttribute(name) - gets a global atribute by name
  • removeGlobalAttribute(string) - removes a global attribute
  • findObjectById(id) - finds objects by id
  • findObjectsByQuery(query) - finds objects that meet conditions in the query
  • findObjectsByName(name) - finds objects by name
  • findObjectByName(name) - gets the first object of given name
  • findObjectsByTag(tag) - finds objects that have given tag
  • findObjectByTag(tag) - gets the first object that has given tag
  • findObjectsByFlag(flag) - finds objects that have given flag set
  • findObjectByFlag(flag) - gets the first object that has a given flag set
  • findObjectsByState(state) - finds objects by numeric state
  • findObjectByState(state) - gets the first object that has a numeric state set
  • sendMessage(message) - sends a generic message
    • it's better to send message from within components (the message will carry their id)
  • clearScene(config) - erases the whole scene

Scene querying​

let droids = scene.findObjectsByTag('droid');
let charged = scene.findObjectsByFlag(FLAG_CHARGED);
let idle = scene.findObjectsByState(STATE_IDLE);

let chargedIdleDroids = scene.findObjectsByQuery({
      ownerTag: 'droid',
      ownerFlag: FLAG_CHARGED,
      ownerState: STATE_IDLE
});

Delayed invocation​

  • don't use setInterval() nor setTimeout(), as those two methods are invoked from the browser's event loop
  • if you want something to happen at a delay, you can use scene.callWithDelay() instead, which is invoked at the end of the update loop
  • example: clear the whole scene after 3 seconds
// invoked from within a component
this.scene.callWithDelay(1000, () => this.scene.clearScene());

Messaging​

  • Message is an crate for inter-component communication
  • every component contains method sendMessage(action, data)
  • we can also use scene.sendMessage(Message) to send a message from outside a component
  • in order to receive messages of a given type, the component first needs to register itself via subscribe(action)
  • all messages are handled in OnMessage() of their respective handlers
    • if the OnMessage() handler returns a value, it will be collected in the responses structure
  • if any component sets expired = true, the message will not be passed any furter

Example: Finish a component by a message​


class Sender extends ECS.Component {

  onInit() {
    this.fixedFrequency = 1;
  }

  onFixedUpdate() {
    this.sendMessage('RECEIVER_FINISH');
  }
}

class Receiver extends ECS.Component {

  onInit() {
    this.subscribe('RECEIVER_FINISH');
  }

  onMessage(msg: ECS.Message) {
    if(msg.action === 'RECEIVER_FINISH') {
      this.finish(); // will be removed from the scene instantly
    }
  }
}

Built-in messages​

  • ANY - gets all messages (good for debugging)
  • OBJECT_ADDED - object was added to the scene
  • OBJECT_REMOVED - object was removed
  • COMPONENT_ADDED - component was added to an object
  • COMPONENT_DETACHED - component was detached from the scene (along with its owner)
  • COMPONENT_REMOVED - component was removed
  • ATTRIBUTE_ADDED - attribute was added (sent only when notifyAttributeChanges = true)
  • ATTRIBUTE_CHANGED - attribute has changed (sent only when notifyAttributeChanges = true)
  • ATTRIBUTE_REMOVED - attribute was removed (sent only when notifyAttributeChanges = true)
  • STATE_CHANGED - state of an object has changed (sent only when notifyStateChanges = true)
  • FLAG_CHANGED - flag of an object has changed (sent only when notifyFlagChanges = true)
  • TAG_ADDED - tag was added to an object (sent only when notifyTagChanges = true)
  • TAG_REMOVED - tag was removed from an object (sent only when notifyTagChanges = true)
  • SCENE_CLEAR - the whole scene was erased

Example: Collect new objects by messaging pattern​


class TreeCollector extends ECS.Component {

  trees: ECS.Container[] = [];

    onInit() {
        this.subscribe('OBJECT_ADDED');
    }

    onMessage(msg: ECS.Message) {
        if (msg.action === 'OBJECT_ADDED' && msg.gameObject.hasTag('TREE')) {
            trees.push(msg.gameObject);
        }
    }
}

Built-in components and tools​

Builder​

  • a versatile builder for all types of game objects
  • anchor() - set an anchor
  • virtualAnchor() - sets an anchor only virtually to calculate positions
  • relativePos() - relative position on the screen within [0, 1] range
  • localPos() - local position
  • globalPos() - global position
  • scale() - local scale
  • withAttribute() - adds an attribute
  • withComponent() - adds a component
  • withFlag() - adds a flag
  • withState() - adds a state
  • withTag() - adds a tag
  • withParent() - sets a parent
  • withChild() - sets a child Builder
  • withName() - sets a name
  • asContainer() - sets the target object as a container
  • asGraphics() - sets the target object as graphics
  • asXYZ() - sets the target object as XYZ (anything from PIXI object collection)
  • buildInto() - puts the data into an existing object
  • build() - builds a new object
  • clear() - clears data
new ECS.Builder(scene)
    .relativePos(0.5, 0.92)
    .anchor(0.5, 1)
    .withAttribute(Attributes.RANGE, 25)
    .withFlag(FLAG_COLLIDABLE)
    .withFlag(FLAG_RANGE)
    .withState(STATE_IDLE)
    .withComponent(new TowerComponent())
    .withComponent(new AimControlComponent())
    .withComponent(new ProjectileSpawner())
    .withName('tower')
    .asSprite(PIXI.Texture.from(Assets.TEX_TOWER))
    .withParent(rootObject)
.build();

Chain Component​

  • very powerful implementation of chain-of-commands
  • every action is bound to the game update loop - the component udpates it inner state and invokes commands only when it's its turn
// displays a sequence of fancy rotating texts whilst in the bonus mode
this.owner.addComponent(new ChainComponent()
  .beginWhile(() => this.gameModel.mode === BONUS_LEVEL)
      .beginRepeat(4)
          .waitFor(() => new RotationAnimation(0,360))
          .waitFor(() => new TranslateAnimation(0,0,2,2))
          .call(() => textComponent.displayMessage('BONUS 100 POINTS!!!'))
          .call(() => soundComponent.playSound('bonus'))
      .endRepeat()
  .endWhile()
  .call(() => viewComponent.removeAllTexts()));

// changes background music every 20 seconds
this.owner.addComponent(new ChainComponent()
  .waitForMessage('GAME_STARTED')
  .beginWhile(() => this.scene.stage.hasFlag(GAME_RUNNING))
    .waitTime(20000)
    .call(() => this.changeBackgroundMusic())
  .endWhile()

Functional component​

  • a generic component that serves as a wrapper for simple functions
new ECS.FuncComponent('view')
    .setFixedFrequency(0.1) // 1 update per 10 seconds
    .doOnMessage('UNIT_EXPLODED', (cmp, msg) => cmp.playSound(Sounds.EXPLOSION))
    .doOnMessage('UNIT_SPAWNED', (cmp, msg) => cmp.displayWarning(Warnings.UNIT_RESPAWNED))
    .doOnFixedUpdate((cmp, delta, absolute) => cmp.displayCurrentState())

Key-Input Component​

  • a simple keyboard handled that only stores pressed keys
  • doesn't send any messages, it has to be polled manually
// Factory.ts
initGame(scene: ECS.Scene) {
  ...
  // here we need to add the KeyInputComponent globally
  scene.addGlobalComponent(new KeyInputComponent());
  ...
}

// CannonInputController.ts
export class CannonInputController extends CannonController {

onUpdate(delta: number, absolute: number) {
    // assuming that we added this component to the stage
    let cmp = this.scene
      .findGlobalComponentByName<KeyInputComponent>(ECS.KeyInputComponent.name);

    if (cmp.isKeyPressed(ECS.Keys.KEY_LEFT)) {
      this.turnLeft();
    }

    if (cmp.isKeyPressed(ECS.Keys.KEY_RIGHT)) {
      this.turnRight();
    }
  }
}

Pointer-Input Component​

  • a global pointer handler
  • PIXI has a built-in support for mouse events; this component handles mouse/pointer events for the canvas as a whole
  • unlike Key-Input Component, this one is using messaging pattern to notify the observers
  • the component handles both a mouse and a pointer
  • config
    • you need to explicitly configure which events should be captured
    • handleClick will capture down/release actions
// add component
obj.addComponent(new ECS.PointerInputComponent( {
  handleClick: false,
  handlePointerDown: true,
  handlePointerOver: true,
  handlePointerRelease: true,
}));

  • then, you can subscribe for following messages (you can find the enum in ECS.PointerMessages):
    • pointer-tap
    • pointer-down
    • pointer-over
    • pointer-release

Virtual-Gamepad Component​

  • a simple gamepad that extends KeyInputComponent and translates clicks to keys
  • if you replace your KeyInputComponent with VirtualGamepadComponent, your game shouldn't notice the difference
  • config
    • you need to provide a mapper to the keys
    • if you omit certain keys, respective buttons will not render
        this.engine.scene.addGlobalComponent(new ECS.VirtualGamepadComponent({
            KEY_UP: ECS.Keys.KEY_UP,
            KEY_DOWN: ECS.Keys.KEY_DOWN,
            KEY_LEFT: ECS.Keys.KEY_LEFT,
            KEY_RIGHT: ECS.Keys.KEY_RIGHT,
            KEY_A: ECS.Keys.KEY_SPACE,
            KEY_B: ECS.Keys.KEY_ENTER,
            KEY_X: ECS.Keys.KEY_ALT,
            KEY_Y: ECS.Keys.KEY_SHIFT
        }));
  • this being configured, the scene will contain a gamepad rendered on the top

Vector​

  • helper class for vectors

Responsive mode​

  • if you want your game render in full-screen mode, scaling with the browser window, you have 2 options:
    • 1) set resizeToScreen to true while initializing the engine
    • 2) add ?responsive query string

Debug Component​

  • debug component will attach a debugging panel next to the canvas
  • three ways:
    • 1) add DebugComponent to the stage
    • 2) add ?debug query string
    • 3) set debugEnabled to true while initializing the engine
