Everything that is specific to the game (and not to the engine).
Any piece of data which is in a format that can be used by the game engine.
All media elements that are presented to the player and protected by copyright.

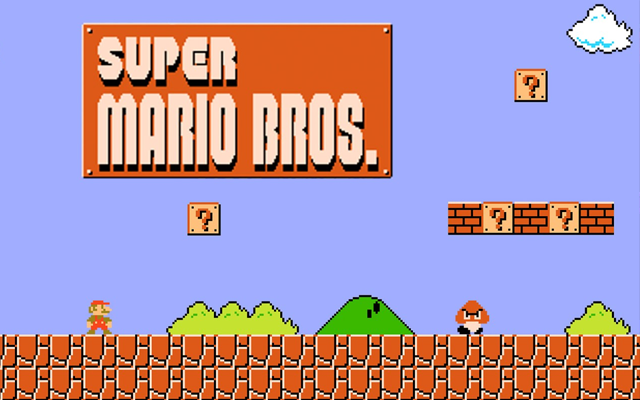

Super Mario (1985)

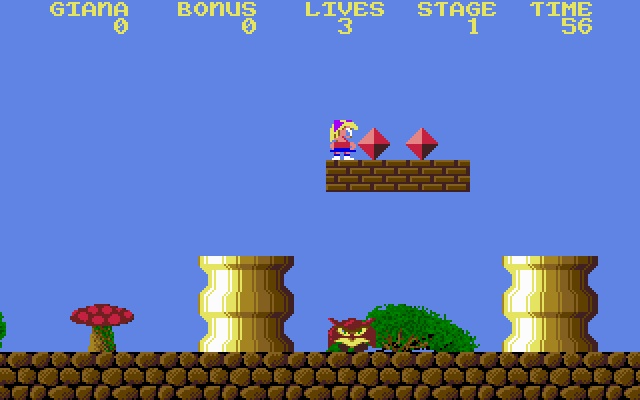

Giana Sisters (1987)

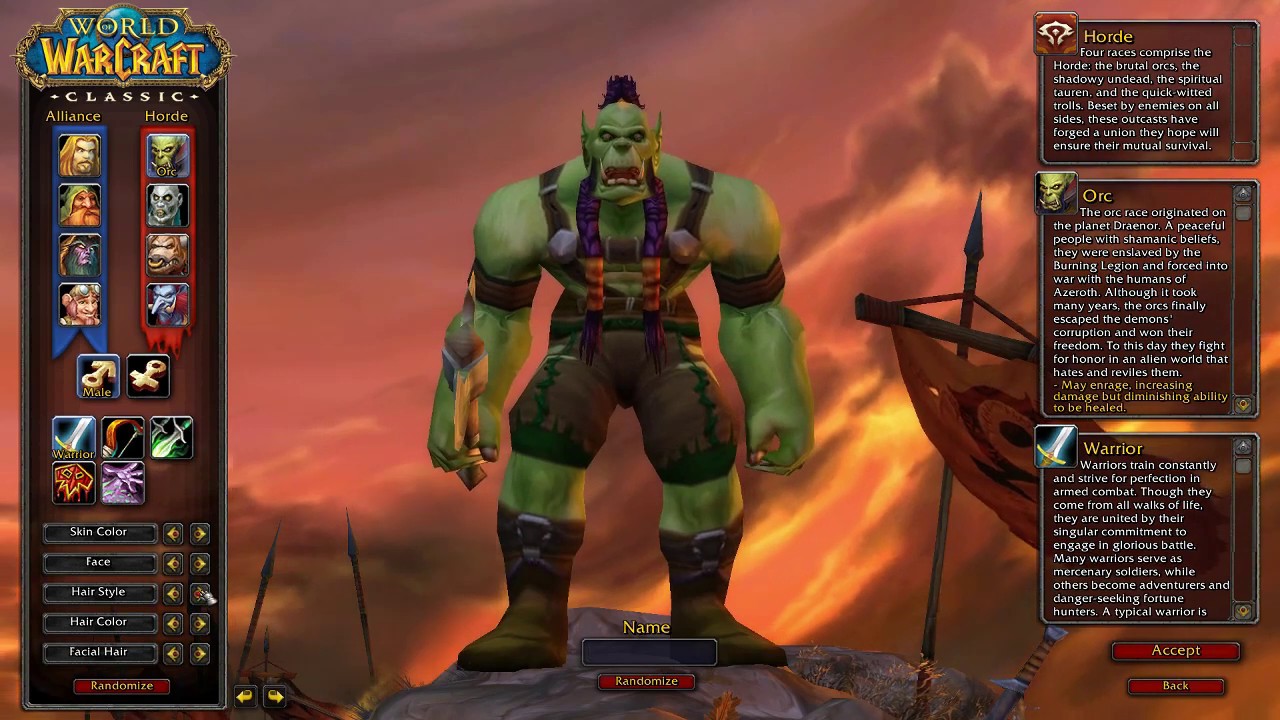

World of Warcraft (2004)

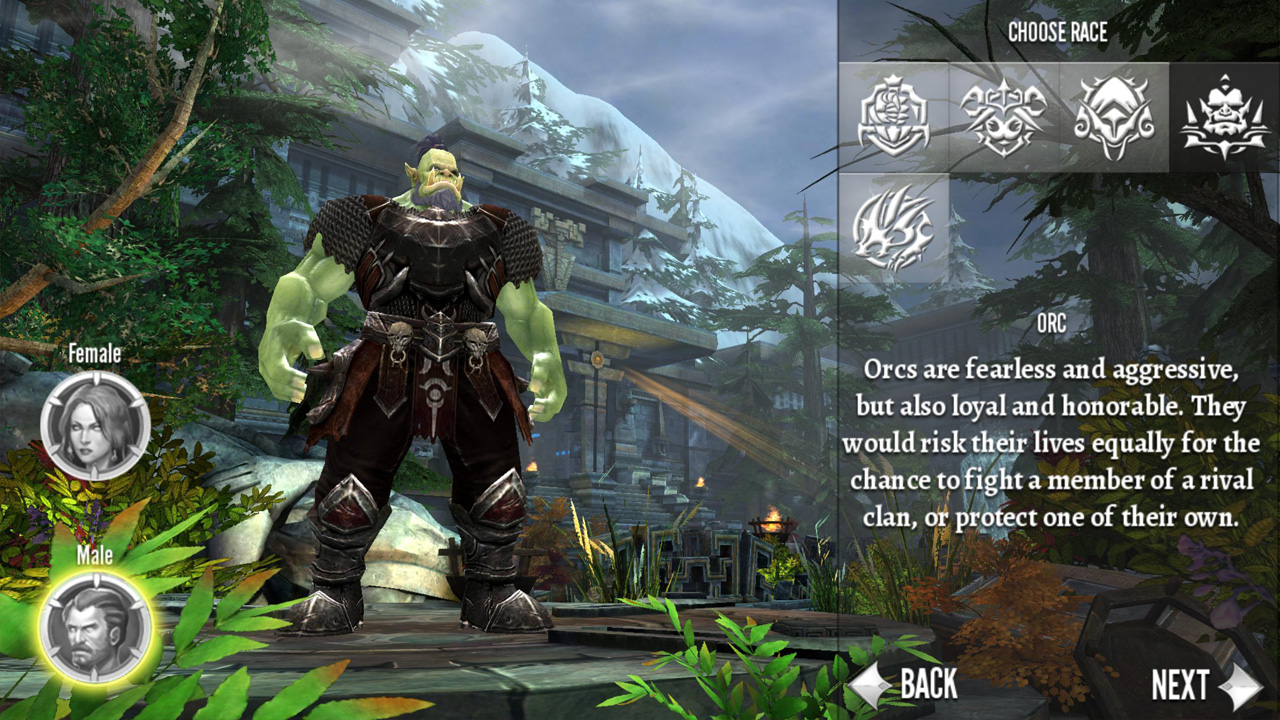

Order and Chaos 2 (2015)

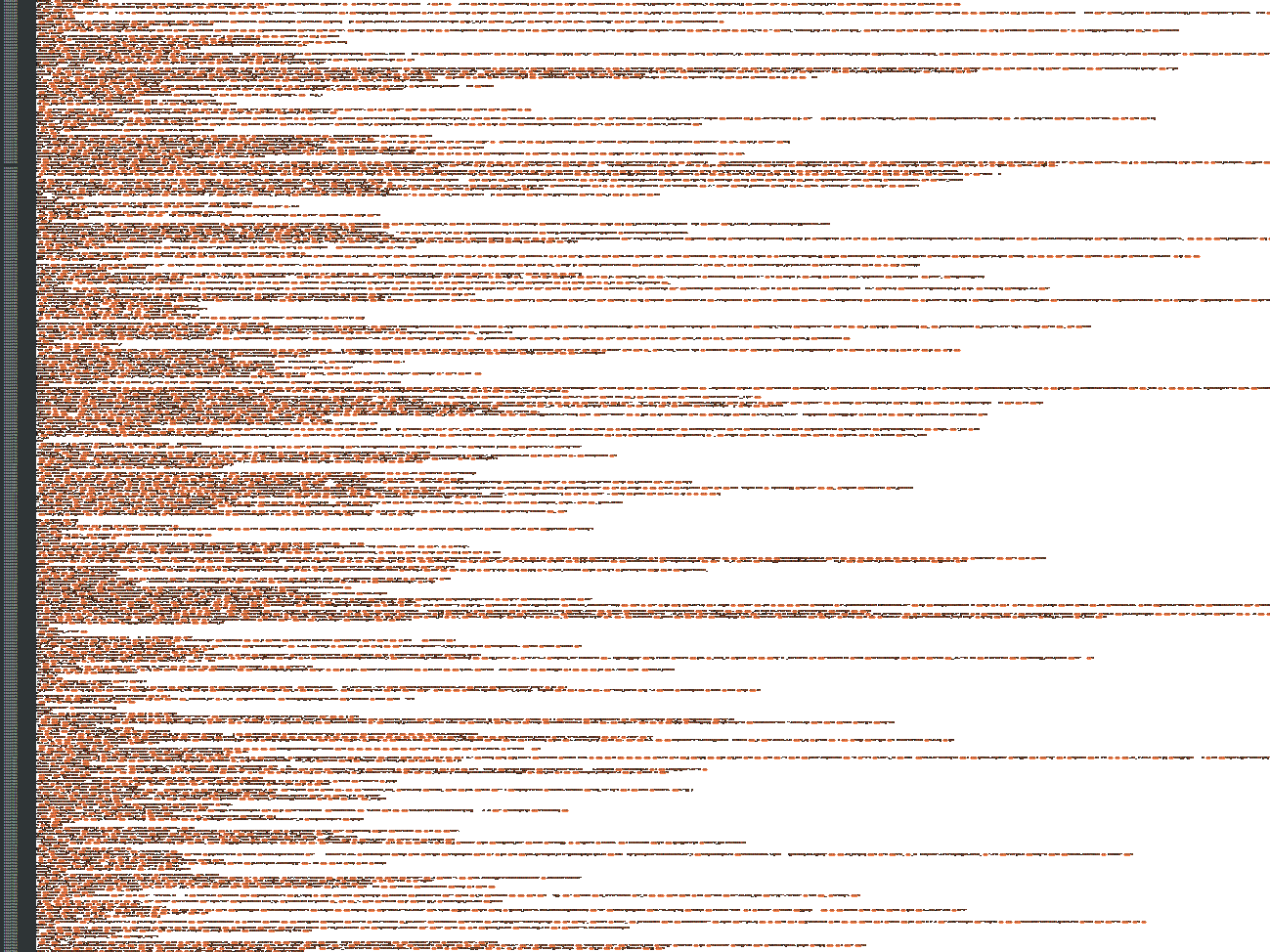

Binary data

Bytecode

Text files

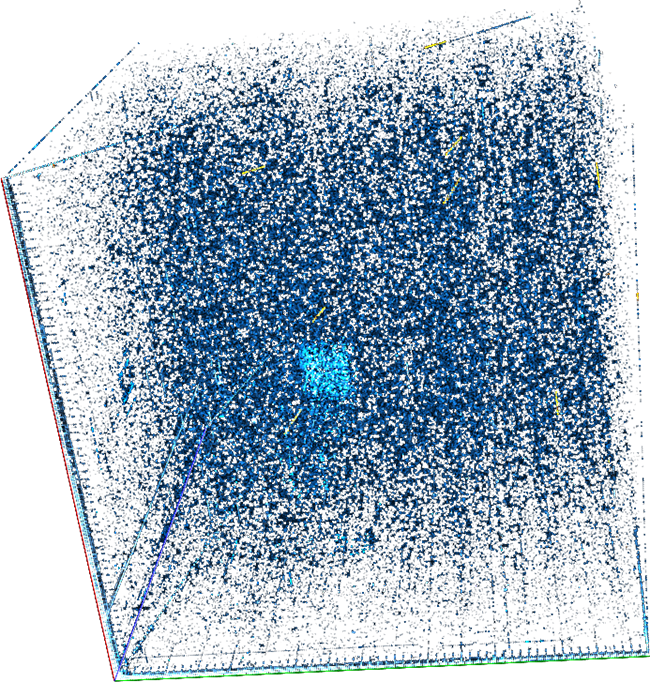

Hybrid files








Sounds
Images / Textures
Video

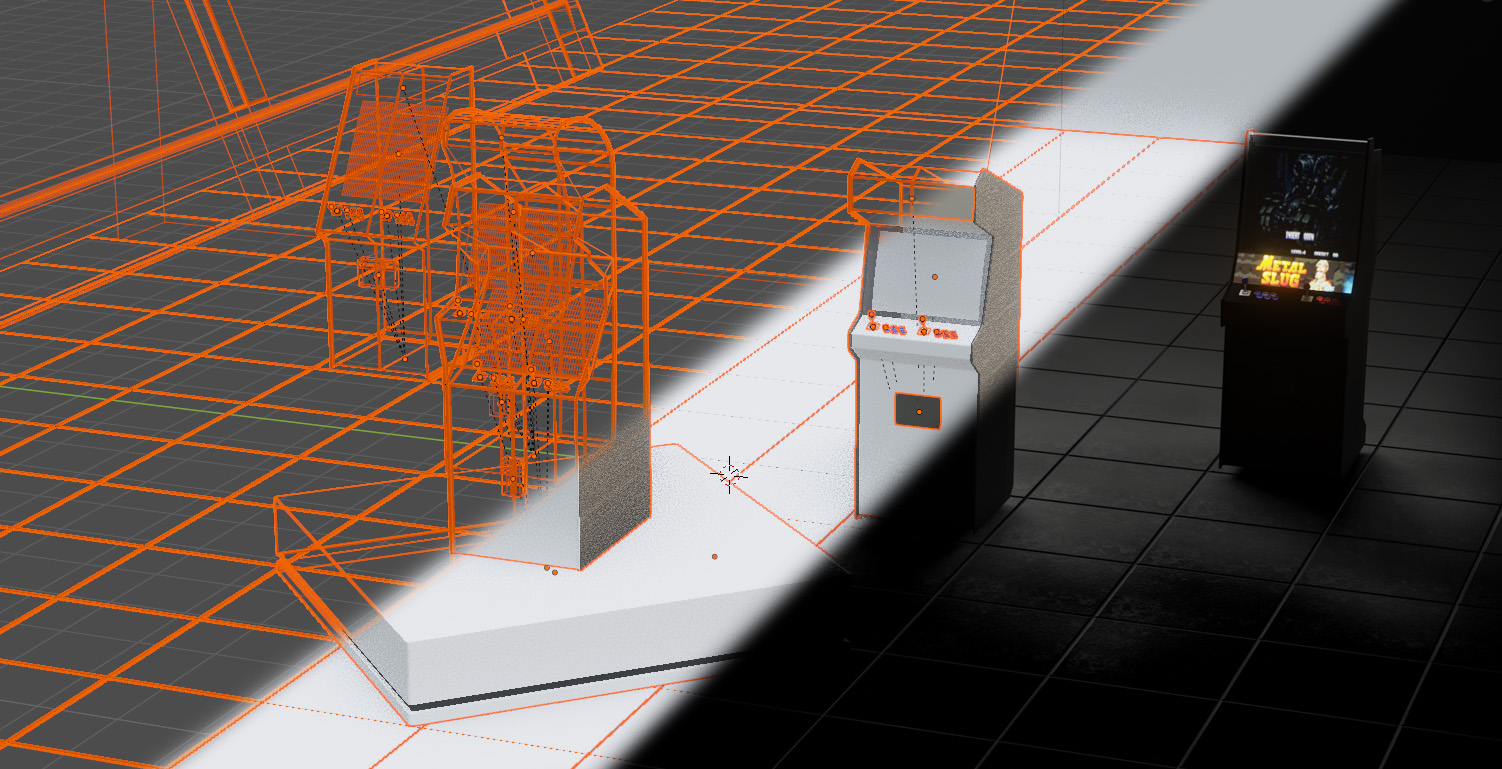

3D Models
Game Data

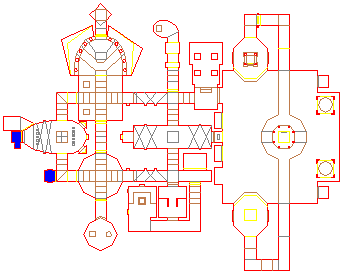

Levels, Maps
Scripts

Provides access to all resources (~assets)
Manages lifetime of each resource
Ensures that only one copy of each resource exists in memory
Loads required resources and unloads those no longer needed
Handles streaming
| 1 | RES ResourceLoader::_load(const String &p_path, const String &p_original_path, |
| 2 | const String &p_type_hint, bool p_no_cache, Error *r_error, bool p_use_sub_threads, |
| 3 | float *r_progress) { |
| 4 | bool found = false; |
| 5 | |
| 6 | // Try all loaders and pick the first match for the type hint |
| 7 | for (int i = 0; i < loader_count; i++) { |
| 8 | if (!loader[i]->recognize_path(p_path, p_type_hint)) { |
| 9 | continue; |
| 10 | } |
| 11 | found = true; |
| 12 | RES res = loader[i]->load(p_path, p_original_path != String() ? |
| 13 | p_original_path : p_path, r_error, p_use_sub_threads, r_progress, p_no_cache); |
| 14 | if (res.is_null()) { |
| 15 | continue; |
| 16 | } |
| 17 | |
| 18 | return res; |
| 19 | } |
| 20 | |
| 21 | ERR_FAIL_COND_V_MSG(found, RES(), vformat("Failed loading resource: %s.", p_path)); |
| 22 | } |
| 1 | CameraTexture::~CameraTexture() { |
| 2 | if (_texture.is_valid()) { |
| 3 | RenderingServer::get_singleton()->free(_texture); |
| 4 | } |
| 5 | } |
| 6 | |
| 7 | void TextureStorage::texture_free(RID p_texture) { |
| 8 | Texture *t = texture_owner.get_or_null(p_texture); |
| 9 | t->cleanup(); |
| 10 | ... |
| 11 | texture_owner.free(p_texture); |
| 12 | } |
| 13 | |
| 14 | void PoolAllocator::free(ID p_mem) { |
| 15 | mt_lock(); |
| 16 | Entry *e = get_entry(p_mem); |
| 17 | bool index_found = find_entry_index(&entry_indices_pos, e); |
| 18 | ... |
| 19 | entry_count--; |
| 20 | free_mem += aligned(e->len); |
| 21 | e->clear(); |
| 22 | mt_unlock(); |
| 23 | } |
Level loading
Air locks
World streams

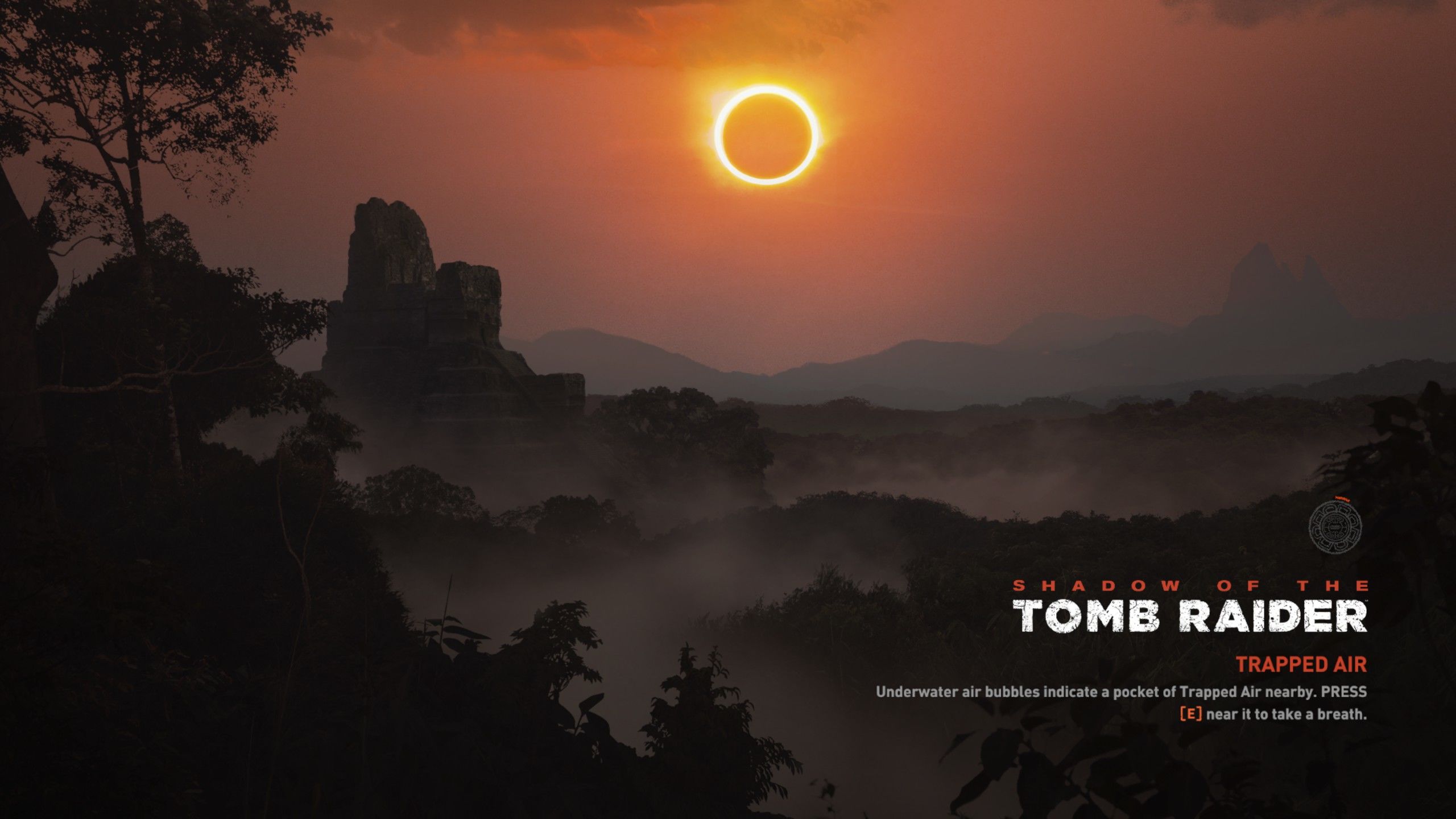

Shadow of the Tomb Raider (2018)

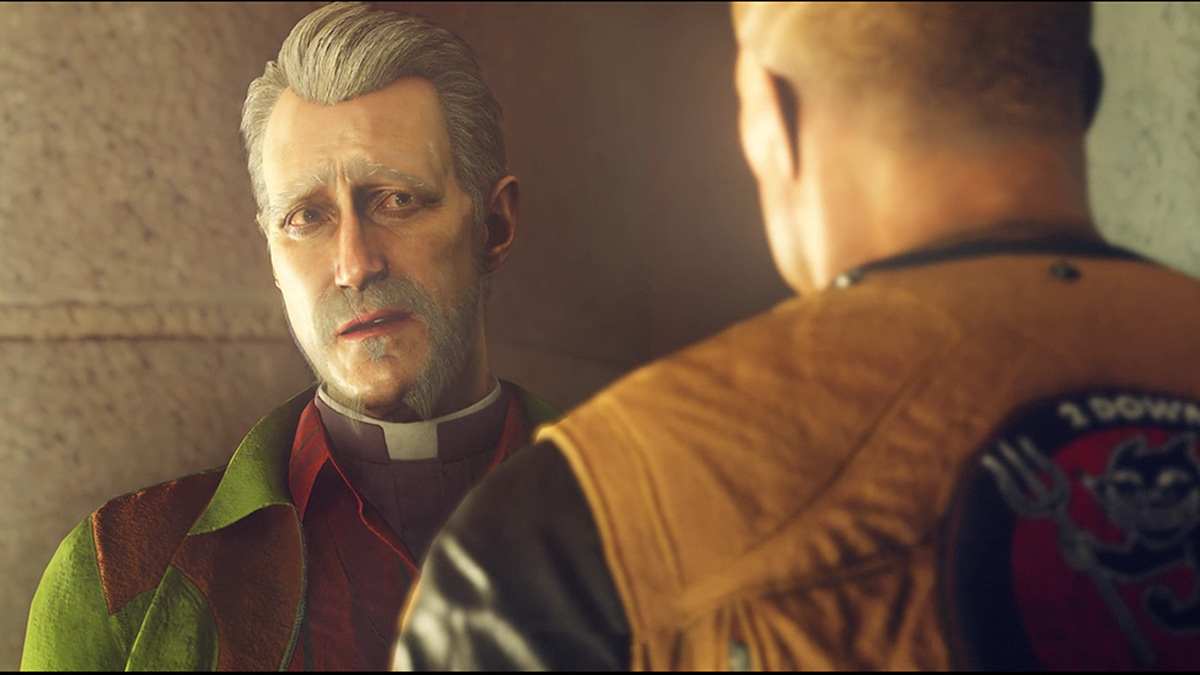

Wolfenstein II: The New Colossus (2018), render

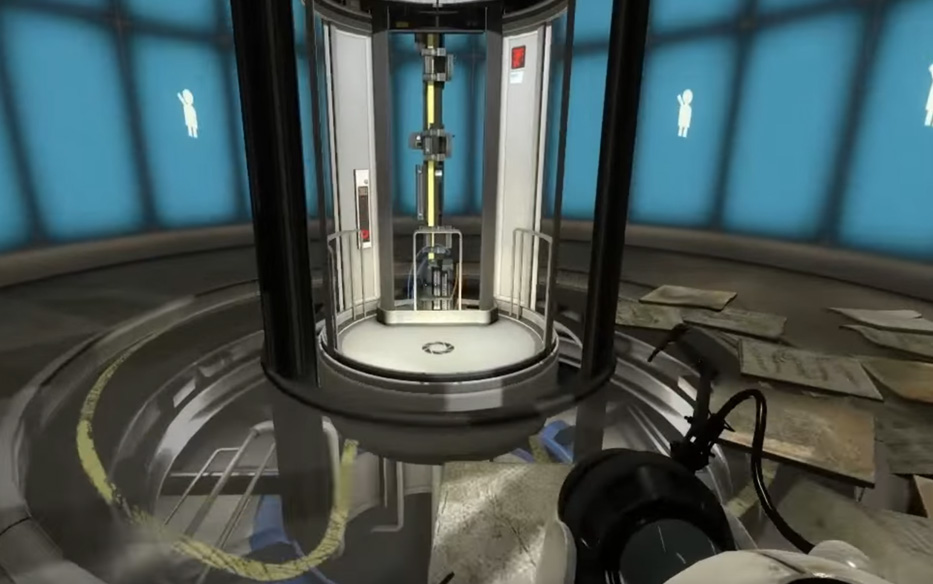

Portal (2007)

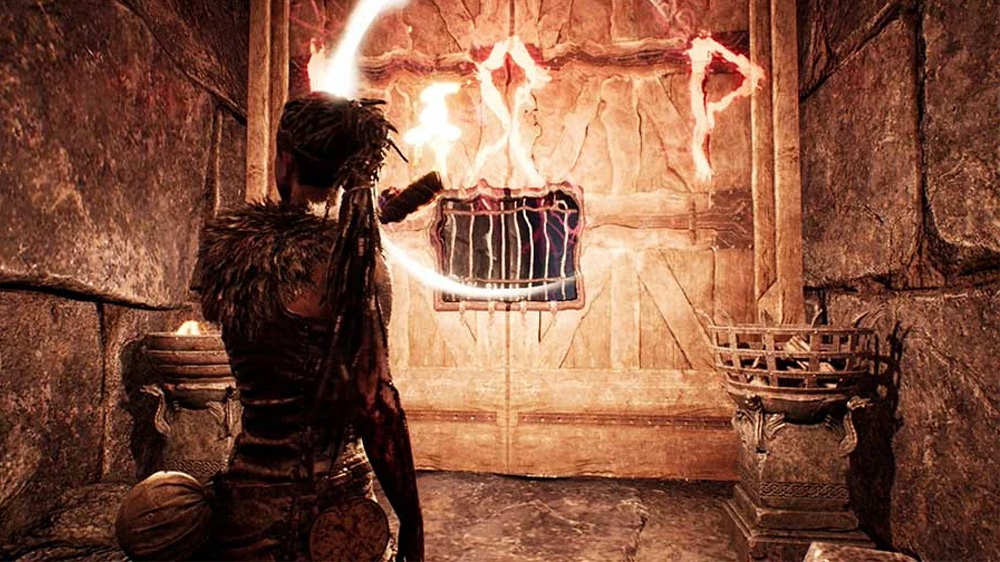

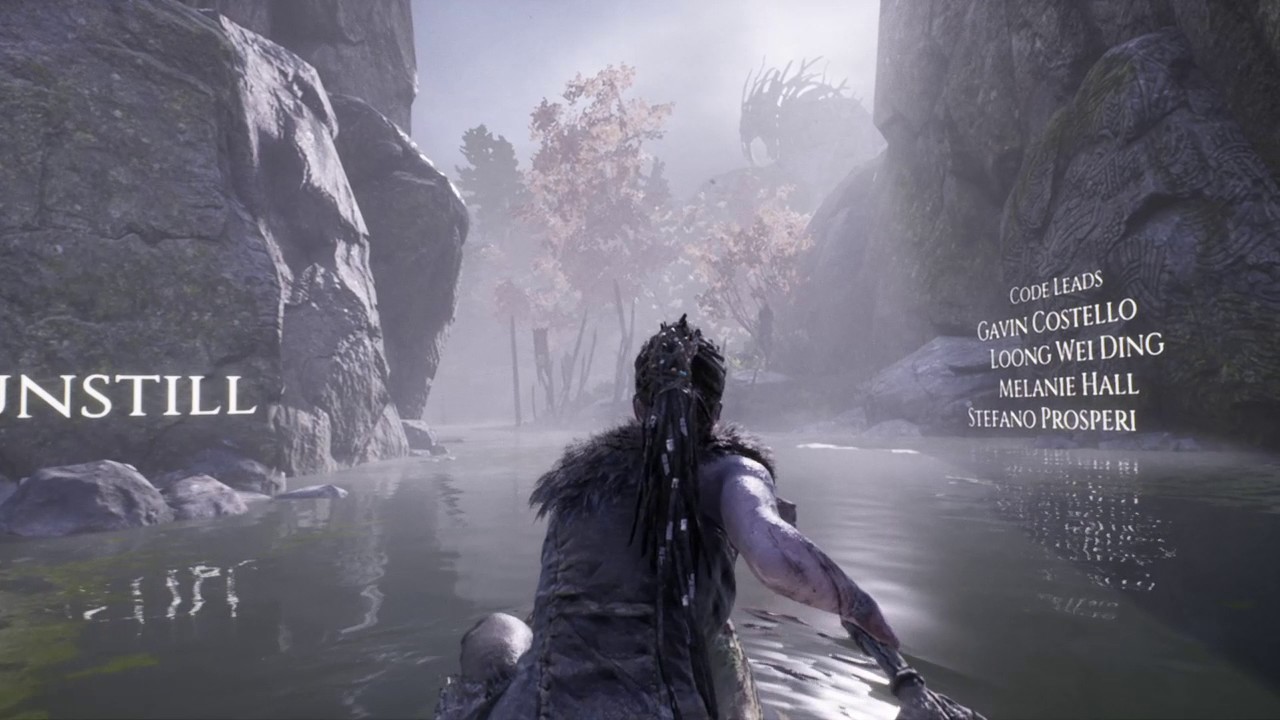

Hellblade: Senua's Sacrifice (2017)

World of Warcraft (2004)

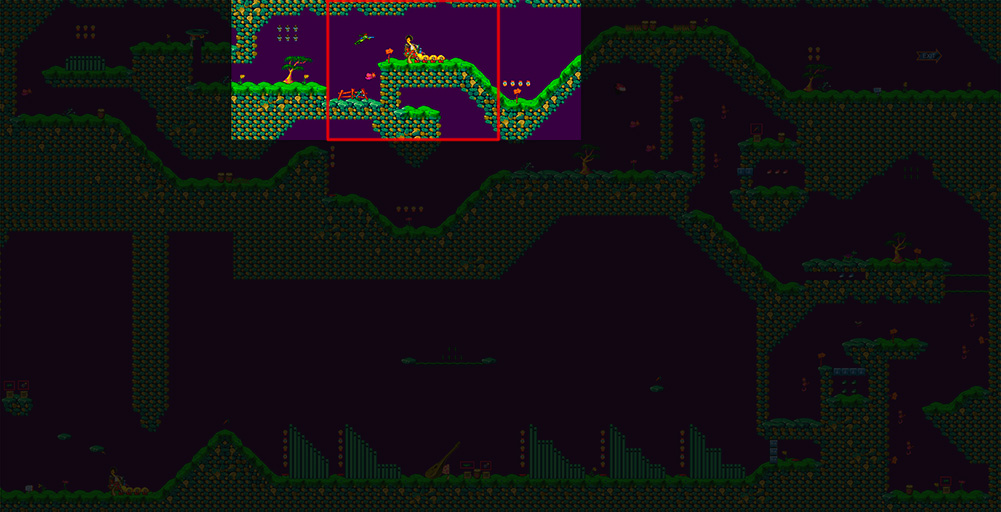

Jazz Jackrabbit 2 (1998)
| 1 | for (y = FTOT(viewY) - 5; y < ITOT(FTOI(viewY) + viewH) + 5; y++) { |
| 2 | for (x = FTOT(viewX) - 5; x < ITOT(FTOI(viewX) + canvasW) + 5; x++) { |
| 3 | if ((x >= 0) && (y >= 0) && (x < LW) && (y < LH) && |
| 4 | grid[y][x].event && (grid[y][x].event < 121) && |
| 5 | (eventSet[grid[y][x].event].difficulty <= game->getDifficulty())) { |
| 6 | while (event) { |
| 7 | if (event->isFrom(x, y)) break; |
| 8 | event = event->getNext(); |
| 9 | } |
| 10 | if (!event) { // event not found -> create it |
| 11 | switch (getEvent(x, y)->movement) { |
| 12 | case 28: |
| 13 | events = new JJ1Bridge(x, y); |
| 14 | break; |
| 15 | case 41: |
| 16 | events = new MedGuardian(x, y); |
| 17 | ... |
| 18 | } |
| 19 | } |
| 20 | } |
| 21 | } |
| 22 | } |
AIFF
WAV
MP3
OGG
JPEG
PNG
TGA
SVG

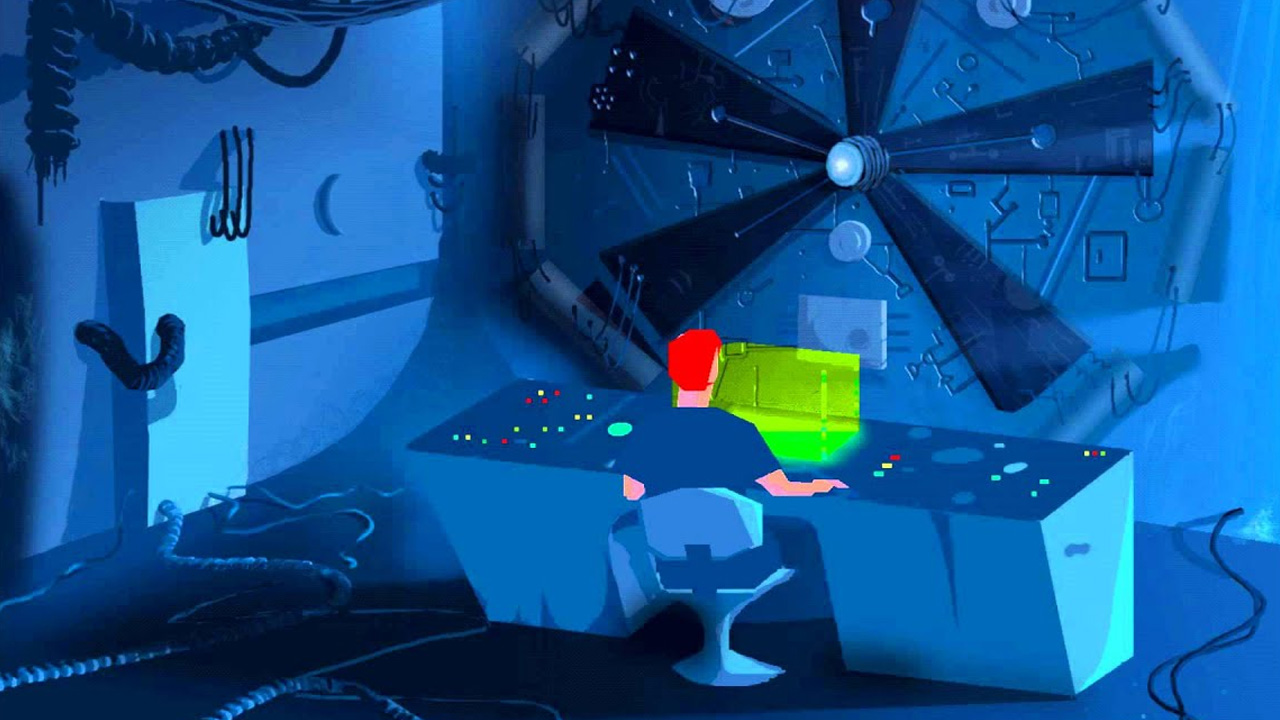

Another World, in-game

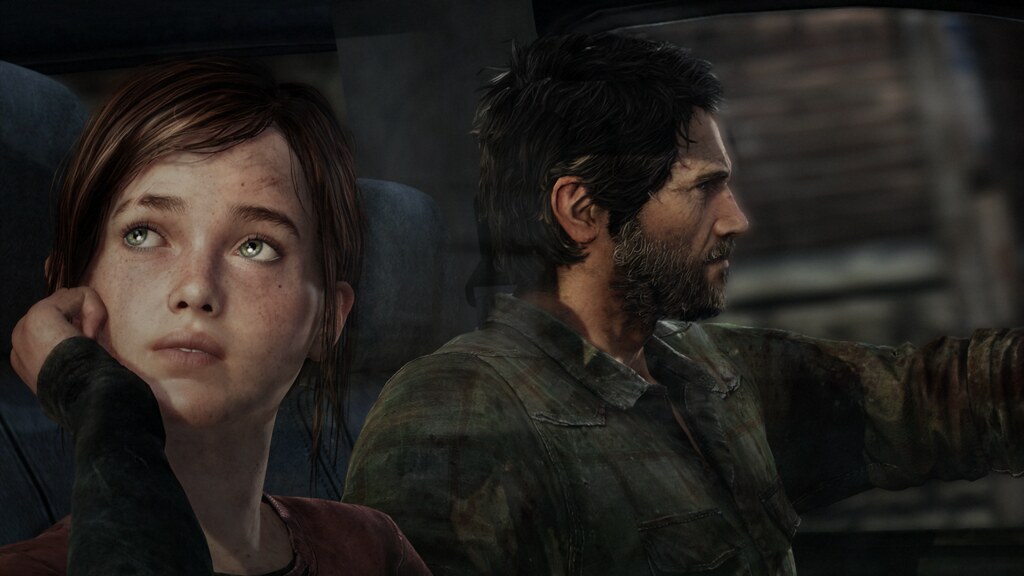

The Last of Us, Part I (2022), in-game

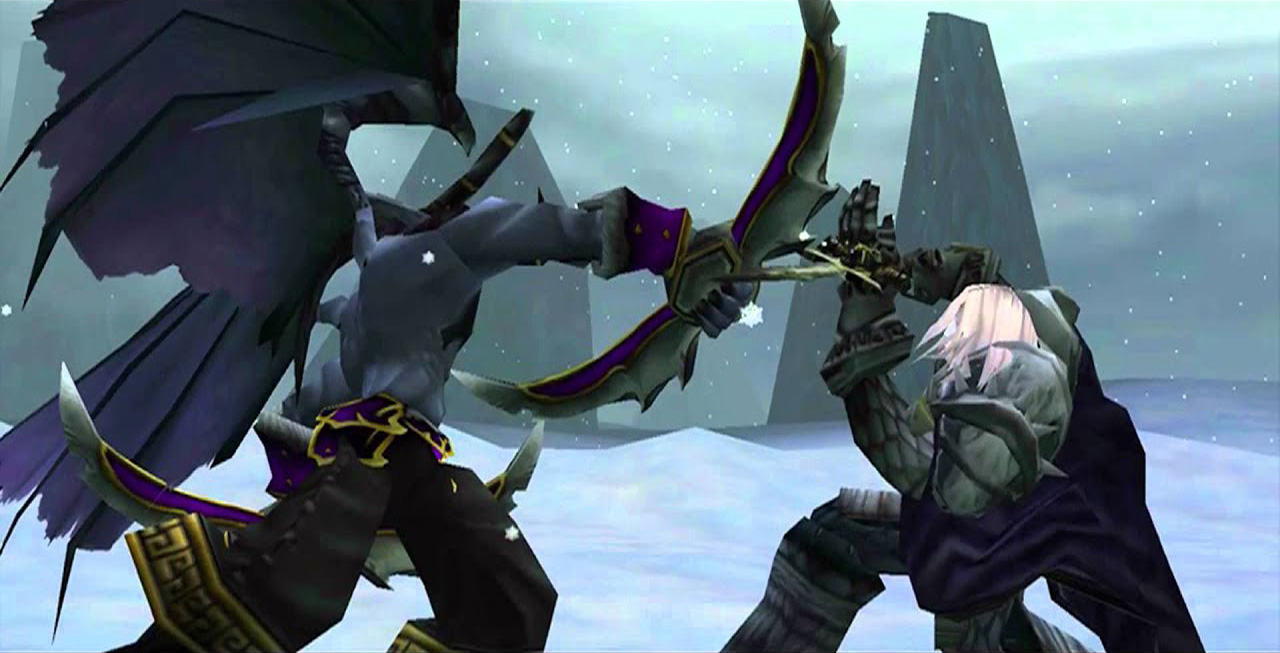

Warcraft 3, in-game and cinematics

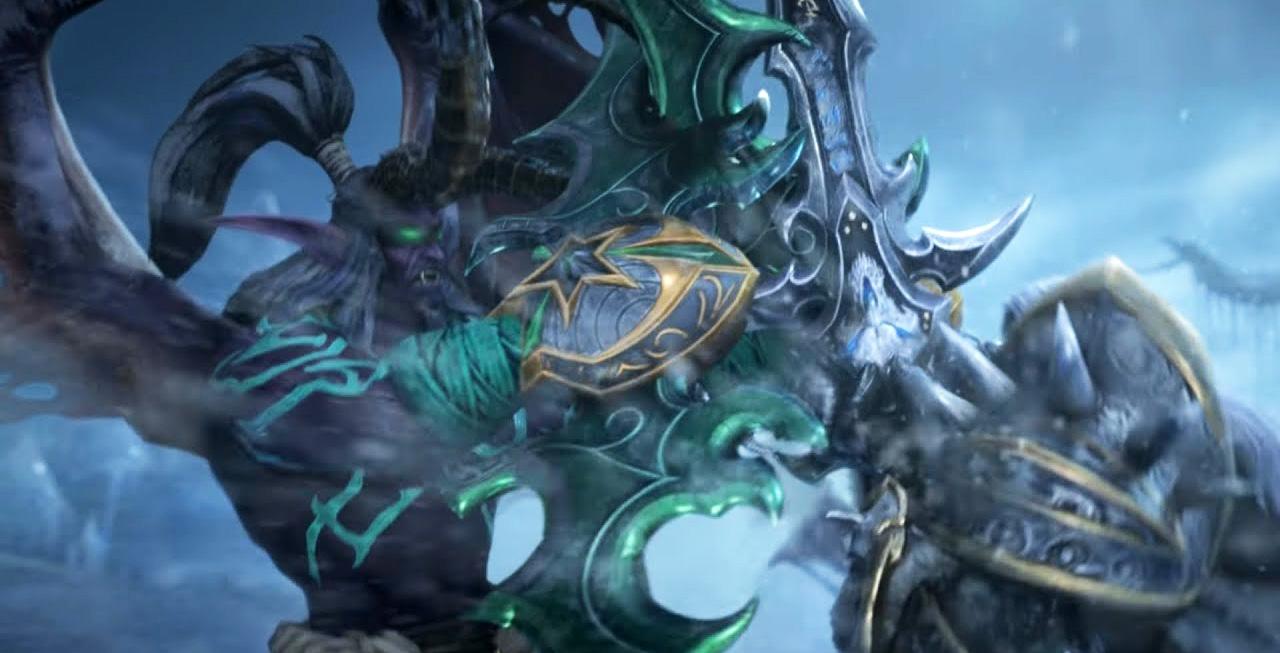

Warcraft 3 Reforged, cinematics
Types
Formats

Diffuse

Displacement

Normal

Volumetric

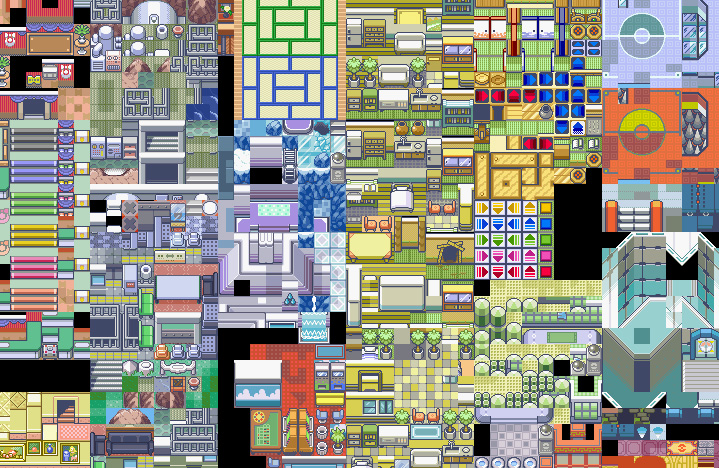

Tileable

Sprite atlas
Sprite

Spritesheet
Sprite atlas

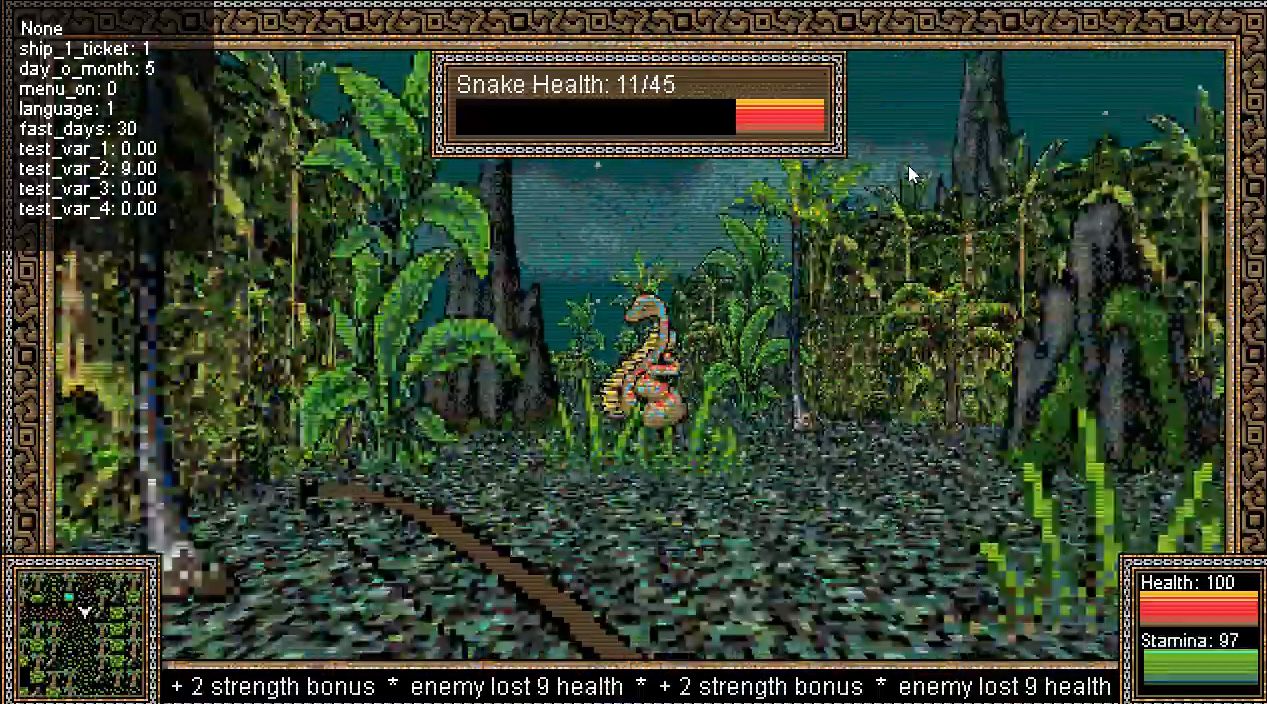

Billboard


Mesh
Materials
Textures
| Appr. mesh | Prec. mesh | CSG | Color | Material | Texture | Camera | Lights | |
|---|---|---|---|---|---|---|---|---|
| STL | ||||||||
| OBJ | ||||||||
| FBX | ||||||||
| DAE | ||||||||
| 3DS | ||||||||
| STEP | ||||||||
| X3D | ||||||||
| BLEND | ||||||||
| GLTF |
ZIP
zlib
Serialized data
Database
Save data
Local Storage
| 1 | let myStorage = window.localStorage; |
| 2 | |
| 3 | myStorage.setItem('player_state', player.stateId); |
| 4 | myStorage.removeItem('player_state'); |
| 5 | myStorage.clear(); |
IndexedDB
| 1 | await db.players.add({ |
| 2 | name: 'Warrior', |
| 3 | avatar: await getBlob('sprite_warrior.png'), |
| 4 | key_mapping: 'default' |
| 5 | }); |
| 1 | { |
| 2 | "player": { |
| 3 | "difficulty": "hard", |
| 4 | "scene": "mountains_02", |
| 5 | "posX" : 12, |
| 6 | "posY" : 56, |
| 7 | "inventory" : ["flashlight, lighter, candle"], |
| 8 | "stamina": 45, |
| 9 | "agility": 12 |
| 10 | } |
| 11 | } |

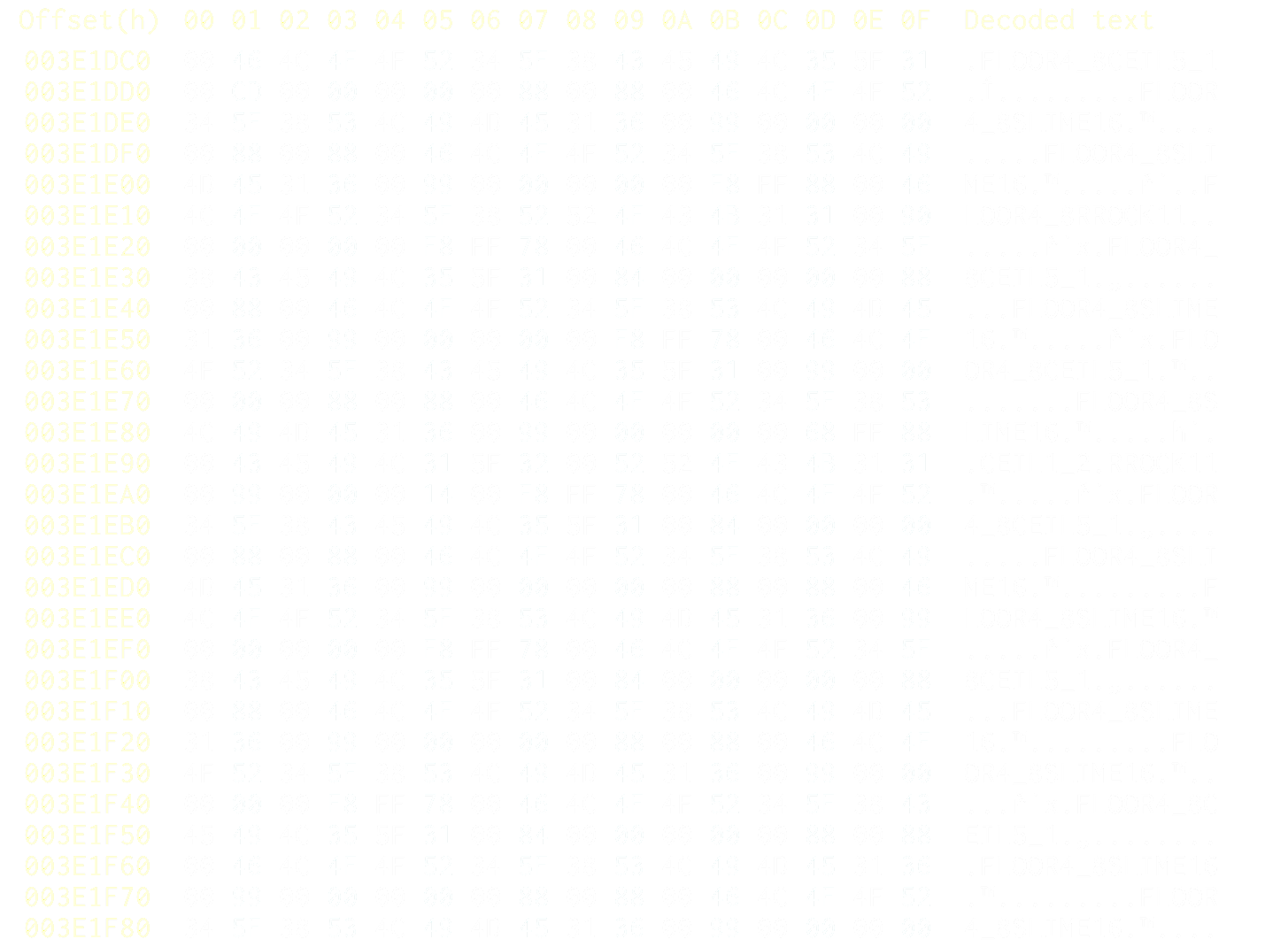

| 1 | // p_saveg.c::P_UnArchiveThinkers |
| 2 | while (1) { |
| 3 | tclass = *save_p++; |
| 4 | switch (tclass) { |
| 5 | case tc_mobj: |
| 6 | PADSAVEP(); |
| 7 | mobj = Z_Malloc (sizeof(*mobj), PU_LEVEL, NULL); |
| 8 | memcpy (mobj, save_p, sizeof(*mobj)); |
| 9 | save_p += sizeof(*mobj); |
| 10 | mobj->state = &states[(int)mobj->state]; |
| 11 | mobj->target = NULL; |
| 12 | if (mobj->player) { |
| 13 | mobj->player = &players[(int)mobj->player-1]; |
| 14 | mobj->player->mo = mobj; |
| 15 | } |
| 16 | P_SetThingPosition (mobj); |
| 17 | mobj->info = &mobjinfo[mobj->type]; |
| 18 | P_AddThinker (&mobj->thinker); |

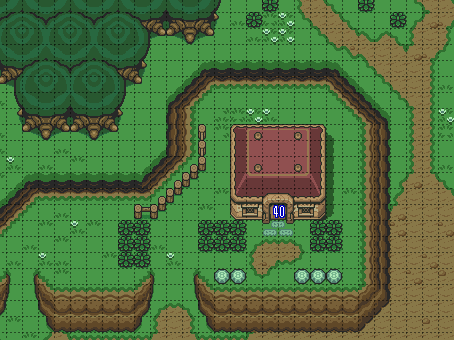

Zelda (2004)

The Messenger (2018)
| 1 | <map version="1.0" orientation="orthogonal" renderorder="right-down" width="120" height="18" tilewidth="128" |
| 2 | tileheight="128" nextobjectid="1"> |
| 3 | <tileset firstgid="1" name="gameart2d-desert" tilewidth="128" tileheight="128" tilecount="40" columns="5"> |
| 4 | <image source="gameart2d-desert.png" width="640" height="1024"/> |
| 5 | <tile id="2"> |
| 6 | <properties> |
| 7 | <property name="type" type="int" value="1"/> |
| 8 | </properties> |
| 9 | </tile> |
| 10 | <tile id="7"> |
| 11 | <properties> |
| 12 | <property name="type" type="int" value="1"/> |
| 13 | </properties> |
| 14 | </tile> |
| 15 | </tileset> |
| 16 | <layer name="background" width="120" height="18"> |
| 17 | <data encoding="csv"> |
| 18 | 0,23,25,25,36,37,36,23,23,37,25,23,25,...... |
